1620664 | Phoenix Contact

Plug, 8 pole, crimp connection, screw locking, angled, 1620664

Order No.: 62P4389
EAN: 4046356841016
MPN:
1620664
SM-7EPWN8AA700
Series: SM

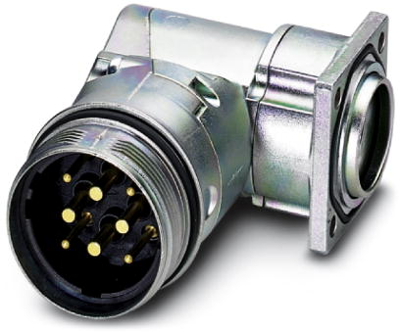

1620664 Phoenix Contact Other Circular Connectors Image 1
1620664 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
96.2115 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
96.21 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
96.2115 €

Device connector, front mounting, 1620664, Phoenix Contact

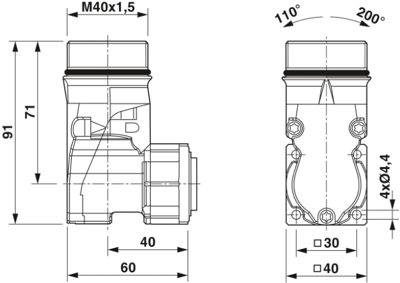

Panel connector, front panel, angled rotatable, for standard and SPEEDCON locking, M40, number of poles: 4+3+PE, contact type: male, crimp connection, O-ring axial, 4xØ4.4, shielded: yes, flange dimension: 40 mm x 40 mm

Technical specifications
Type of locking screw locking
Assembly panel mounting
Contact connection crimp connection
Pin number 8 pole
Version plug
Shell Material metal
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
