1620663 | Phoenix Contact
Plug, 6 pole, crimp connection, screw locking, angled, 1620663
Unit Price (€ / pc.)
94.4622 € *
Available in 10 days: 45 pcs. - if ordered today
Device connector, front mounting, 1620663, Phoenix Contact

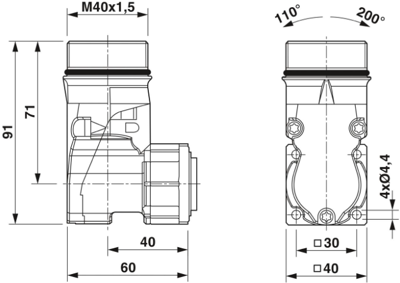

Panel connector, front panel, angled rotatable, for standard and SPEEDCON locking, M40, number of poles: 2+3+PE, contact type: male, crimp connection, O-ring axial, 4xØ4.4, shielded: yes, flange dimension: 40 mm x 40 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Assembly | panel mounting | |
| Pin number | 6 pole | |
| Version | plug | |
| Contact connection | crimp connection | |
| Type of locking | screw locking | |
| Shell Material | metal |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
