1620619 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, straight, 1620619

Order No.: 62P4099
EAN: 4046356845939
MPN:
1620619
SF-5EP1S8AWA00
Series: SF

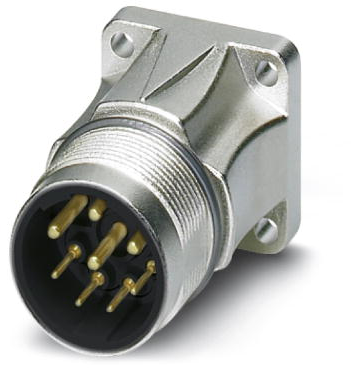

1620619 Phoenix Contact Other Circular Connectors Image 1
1620619 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.6199 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
27.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.6199 €

Device connector, front mounting, 1620619, Phoenix Contact

Panel connector, front panel, straight, for standard and SPEEDCON locking, M23, no. of poles: 5+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, cable diameter range: 0 mm...0 mm, compatible to mating connectors with SPEEDCON or M23 standard knurled nut

Technical specifications
Type of locking screw locking
Assembly panel mounting
Contact connection crimp connection
Cable cross-section 0.75-1.5 mm²
Pin number 6 pole
Version plug
Shell Material metal
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
