1620460 | Phoenix Contact

Plug, 9 pole, crimp connection, screw locking, straight, 1620460

Order No.: 62P4778
EAN: 4046356828147
MPN:
1620460
ST-8EP1N8AWK00S
Series: ST
Phoenix Contact

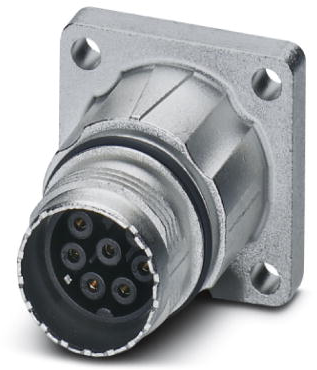

1620460 Phoenix Contact Other Circular Connectors Image 1
1620460 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.7397 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
25.74 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
25.7397 €

Device connector, front mounting, 1620460, Phoenix Contact

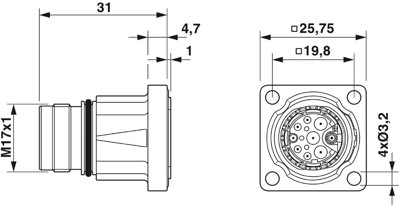

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 5+3+PE, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 25.75 mm x 25.75 mm

Technical specifications
Version plug
Shell Material metal
Contact connection crimp connection
Cable cross-section 0.34-0.5 mm²
Assembly panel mounting
Orientation straight
Pin number 9 pole
Type of locking screw locking
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
