1619993 | Phoenix Contact

Socket, 6 pole, solder connection, screw locking, straight, 1619993

Order No.: 61P9847
EAN: 4046356820011
MPN:
1619993
CA-06S1N122S00
Series: CA

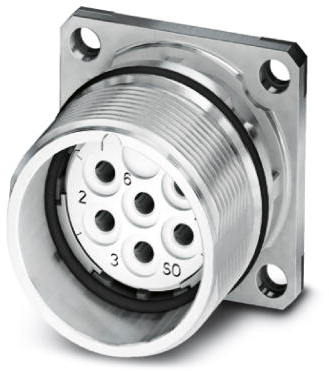

1619993 Phoenix Contact Other Circular Connectors Image 1
1619993 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.8627 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
15.86 € *
Price list
Quantity
Price per unit*
1 pcs.
15.8627 €
10 pcs.
13.9706 €
50 pcs.
13.0186 €
150 pcs.
12.4236 €
500 pcs.
11.8167 €
*incl. VAT plus shipping costs
Subject to prior sale

Device connector, 1619993, Phoenix Contact

M23, Device connector front mounting, CA, Straight, Shielded: yes, for standard and SPEEDCON interlock, Number of positions: 6, Direction of rotation: Standard, Type of contact: Socket, Solder connection, Flat gasket, 4x Ø 3.2, Flange dimensions: 25 mm x 25 mm, Coding: N, Alternative product in accordance with RoHS II without Exemption 6c.

Features

  • Safe use in the field, thanks to high degree of protection
  • Connector for flexible on-site assembly
  • Consistent EMC protection for reliable transmission of signals
  • Solder connection: proven connection technology for various litz wires
Technical specifications
Orientation straight
Pin number 6 pole
Type of locking screw locking
Contact connection solder connection
Assembly panel mounting
Cable cross-section 2.5 mm²
Version socket
contact surface nickel-plated/gold-plated
Shell Material gadolinium zinc
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
