1619992 | Phoenix Contact

Plug, 6 pole, solder connection, screw locking, straight, 1619992

Order No.: 61P9794
EAN: 4046356820028
MPN:
1619992
CA-06P1N122S00
Series: CA

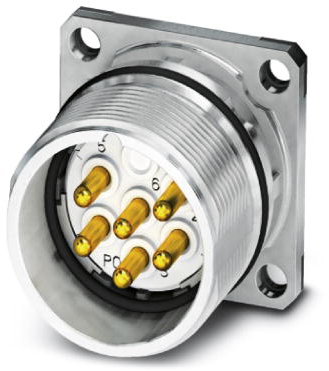

1619992 Phoenix Contact Other Circular Connectors Image 1
1619992 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.0035 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
21.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.0035 €

Device connector, front mounting, 1619992, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M23, pole count: 6, contact type: male, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Filter Property Value
Orientation straight
Assembly panel mounting
Pin number 6 pole
Version plug
Contact connection solder connection
Type of locking screw locking
Cable cross-section 2.5 mm²
contact surface nickel-plated/gold-plated
Shell Material gadolinium zinc
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
