1619991 | Phoenix Contact

Socket, 6 pole, crimp connection, screw locking, straight, 1619991

Order No.: 61P9873
EAN: 4046356820035
MPN:
1619991
CA-06S1N8A2S00
Series: CA
1619991 Phoenix Contact Other Circular Connectors Image 1
1619991 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.9115 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
12.91 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.9115 €

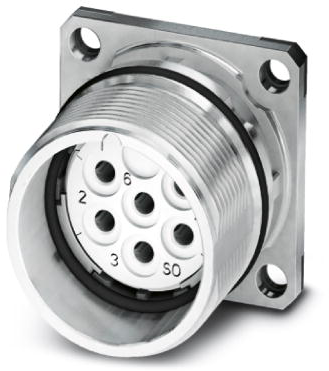

Device connector, front mounting, 1619991, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M23, pole count: 6, contact type: female, crimp termination, flat seal, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Filter Property Value
Pin number 6 pole
Shell Material gadolinium zinc
Cable cross-section 2.5 mm²
Version socket
Assembly panel mounting
Orientation straight
Type of locking screw locking
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
