1619989 | Phoenix Contact

Socket, 7 pole, solder connection, screw locking, straight, 1619989

Order No.: 61P9953
EAN: 4046356820059
MPN:
1619989
CA-07S1N122S00
Series: CA

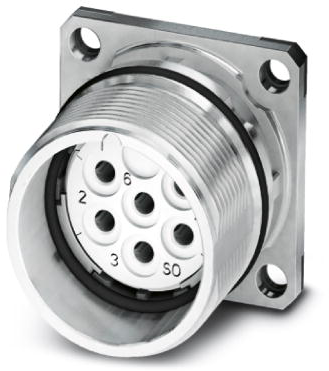

1619989 Phoenix Contact Other Circular Connectors Image 1
1619989 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.4783 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
24.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.4783 €

Device connector, front mounting, 1619989, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 7, contact type: female, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Assembly panel mounting
Orientation straight
Type of locking screw locking
Pin number 7 pole
Shell Material gadolinium zinc
Version socket
Cable cross-section 2.5 mm²
contact surface nickel-plated/gold-plated
Contact connection solder connection
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
