1619988 | Phoenix Contact

Plug, 7 pole, solder connection, screw locking, straight, 1619988

Order No.: 61P9900
EAN: 4046356820066
MPN:
1619988
CA-07P1N122S00
Series: CA

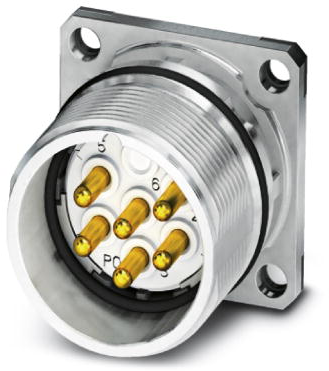

1619988 Phoenix Contact Other Circular Connectors Image 1
1619988 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
22.3006 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
22.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
22.3006 €

Device connector, front mounting, 1619988, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M23, pole count: 7, contact type: male, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Filter Property Value
Version plug
Orientation straight
Shell Material gadolinium zinc
Pin number 7 pole
Cable cross-section 2.5 mm²
Contact connection solder connection
contact surface nickel-plated/gold-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
