1619968 | Phoenix Contact
Plug, 12 pole, solder connection, screw locking, straight, 1619968
Unit Price (€ / pc.)
15.7794 € *
Available in 10 days: 1 pcs. - if ordered today
Total Price:
15.78 € *
Price list
Quantity
Price per unit*
1 pcs.
15.7794 €
10 pcs.
14.2086 €
100 pcs.
12.7925 €
*incl. VAT plus shipping costs
Subject to prior sale

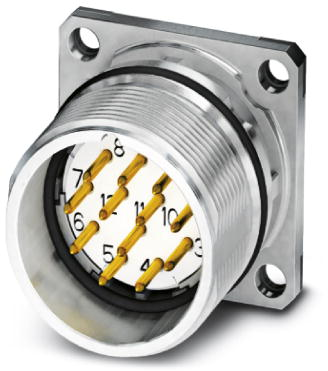

Device connector, 1619968, Phoenix Contact

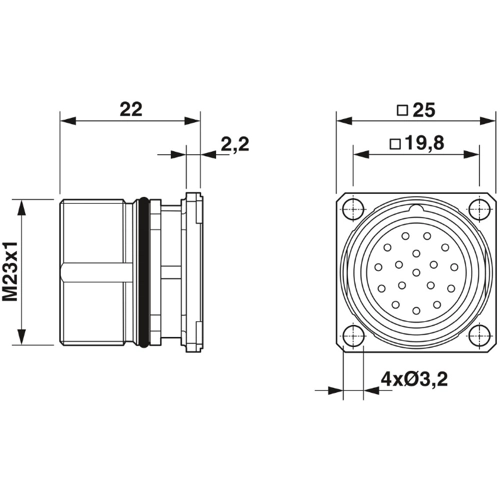

M23, Device connector front mounting, CA, Straight, Shielded: yes, for standard and SPEEDCON interlock, Number of positions: 12, Direction of rotation: Standard, Type of contact: Pin, Solder connection, Flat gasket, 4x Ø 3.2, Flange dimensions: 25 mm x 25 mm, Coding: N, Alternative product in accordance with RoHS II without Exemption 6c.
Features
- Safe use in the field, thanks to high degree of protection
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Solder connection: proven connection technology for various litz wires
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Pin number | 12 pole | |
| Shell Material | gadolinium zinc | |
| Assembly | panel mounting | |
| Type of locking | screw locking | |
| contact surface | nickel-plated/gold-plated | |
| Contact connection | solder connection | |
| Version | plug | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
