1619967 | Phoenix Contact

Socket, 12 pole, crimp connection, screw locking, straight, 1619967

Order No.: 62P0248
EAN: 4046356820158
MPN:
1619967
CA-12S1N8A2S00
Series: CA

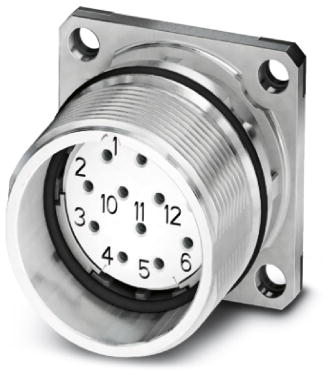

1619967 Phoenix Contact Other Circular Connectors Image 1
1619967 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.9472 € *
Available: 0 pcs.
Available in 10 days: 1 pcs.
Leadtime: 2 Weeks **
Total Price:
12.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
12.9472 €

Device connector, front mounting, 1619967, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M23, pole count: 12, contact type: female, crimp termination, flat seal, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Version socket
Shell Material gadolinium zinc
Contact connection crimp connection
Type of locking screw locking
Cable cross-section 1.0 mm²
Orientation straight
Pin number 12 pole
Assembly panel mounting
Logistics
Customs tariff number 85366990
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
