1619966 | Phoenix Contact

Plug, 12 pole, crimp connection, screw locking, straight, 1619966

Order No.: 62P0189
EAN: 4046356820165
MPN:
1619966
CA-12P1N8A2S00
Series: CA
1619966 Phoenix Contact Other Circular Connectors Image 1
1619966 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.4474 € *
Available: 0 pcs.
Available in 10 days: 3 pcs.
Leadtime: 2 Weeks **
Total Price:
12.45 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
12.4474 €

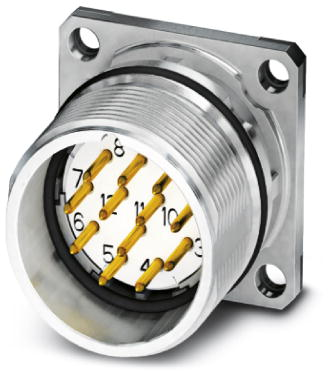

Device connector, front mounting, 1619966, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M23, pole count: 12, contact type: male, crimp termination, flat seal, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Version Stecker
Shell Material Gadolinium-Zink
Contact connection Crimpanschluss
Cable cross-section 1,0 mm²
Assembly Panelmontage
Orientation gerade
Pin number 12-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
