1619959 | Phoenix Contact

Socket, 17 pole, crimp connection, screw locking, straight, 1619959

Order No.: 62P0486
EAN: 4046356820233
MPN:
1619959
CA-17S1N8A2S00
Series: CA

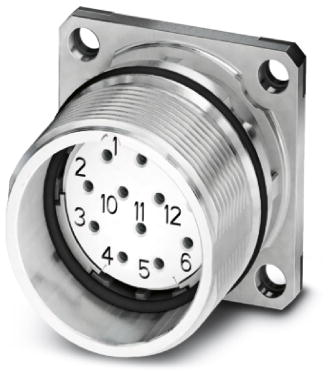

1619959 Phoenix Contact Other Circular Connectors Image 1
1619959 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.7806 € *
Standard delivery time from the manufacturer is: 3 Weeks
Total Price:
12.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.7806 €

Device connector, front mounting, 1619959, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON locking, M23, number of poles: 17, contact type: female, crimp connection, flat seal, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Filter Property Value
Version socket
Assembly panel mounting
Pin number 17 pole
Contact connection crimp connection
Type of locking screw locking
Orientation straight
Shell Material gadolinium zinc
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
