1619954 | Phoenix Contact

Plug, 6 pole, solder connection, screw locking, straight, 1619954

Order No.: 61P9819
EAN: 4046356820288
MPN:
1619954
CA-06P1N222S00
Series: CA

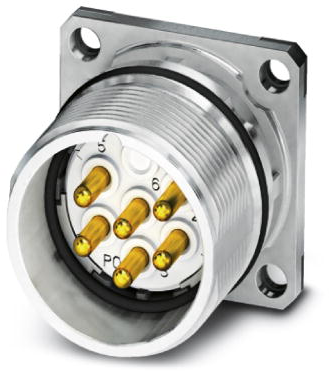

1619954 Phoenix Contact Other Circular Connectors Image 1
1619954 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
24.4783 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
24.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
24.4783 €

Device connector, front mounting, 1619954, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 6, contact type: male, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Filter Property Value
Pin number 6 pole
Shell Material zinc die casting
Version plug
Assembly panel mounting
contact surface nickel-plated/gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
