1619948 | Phoenix Contact

Plug, 12 pole, solder connection, screw locking, straight, 1619948

Order No.: 62P0188
EAN: 4046356820349
MPN:
1619948
CA-12P1N222S00
Series: CA

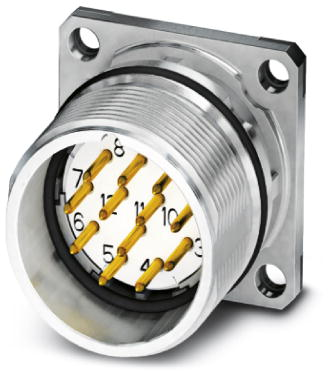

1619948 Phoenix Contact Other Circular Connectors Image 1
1619948 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.8238 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
23.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.8238 €

Device connector, front mounting, 1619948, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 12, contact type: male, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly panel mounting
Contact connection solder connection
Pin number 12 pole
Version plug
Shell Material gadolinium zinc
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
