1619919 | Phoenix Contact

Plug, 16 pole, solder connection, screw locking, straight, 1619919

Order No.: 62P0327
EAN: 4046356820486
MPN:
1619919
CA-16P1NA22S00
Series: CA

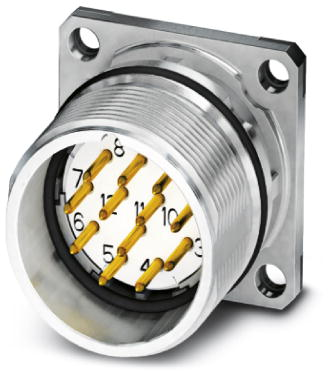

1619919 Phoenix Contact Other Circular Connectors Image 1
1619919 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
40.4005 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
40.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
40.4005 €

Device connector, front mounting, 1619919, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 16, contact type: male, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Filter Property Value
Shell Material gadolinium zinc
Assembly panel mounting
Orientation straight
Version plug
Type of locking screw locking
contact surface nickel-plated/gold-plated
Contact connection solder connection
Pin number 16 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
