1619915 | Phoenix Contact

Plug, 6 pole, solder connection, screw locking, straight, 1619915

Order No.: 61P9846
EAN: 4046356820523
MPN:
1619915
CA-06P1NC22S00
Series: CA

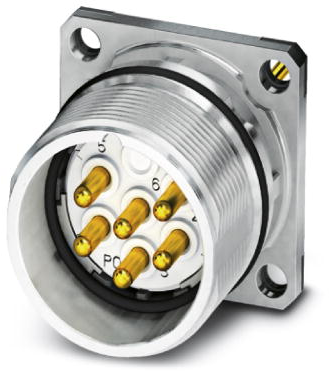

1619915 Phoenix Contact Other Circular Connectors Image 1
1619915 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
23.8238 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
23.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
23.8238 €

Device connector, front mounting, 1619915, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 6, contact type: male, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm

Technical specifications
Filter Property Value
Version plug
Orientation straight
Shell Material gadolinium zinc
Pin number 6 pole
Contact connection solder connection
contact surface nickel-plated/gold-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
