1619908 | Phoenix Contact
Socket, 16 pole, solder connection, screw locking, straight, 1619908
Unit Price (€ / pc.)
39.3295 € *
Available: 0 pcs.
Leadtime: 5 Weeks **

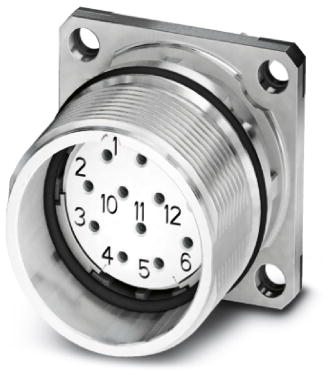

Device connector, front mounting, 1619908, Phoenix Contact
Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 16, contact type: female, solder termination, flat gasket, 4x Ø 3.2, flange dimension: 25 mm x 25 mm
Technical specifications
| Type of locking | screw locking | |
| contact surface | nickel-plated/gold-plated | |
| Assembly | central Mounting | |
| Contact connection | solder connection | |
| Cable cross-section | 2.5 mm² | |
| Pin number | 16 pole | |
| Version | socket | |
| Shell Material | gadolinium zinc | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
