1619888 | Phoenix Contact

Plug, 12 pole, crimp connection, screw locking, straight, 1619888

Order No.: 62P0192
EAN: 4046356820783
MPN:
1619888
CA-12P1N8A6Z00
Series: CA

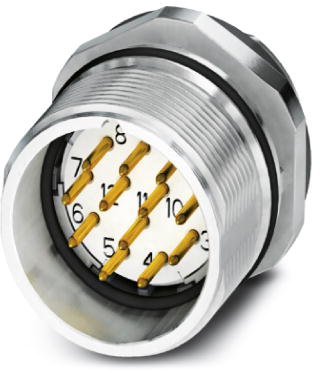

1619888 Phoenix Contact Other Circular Connectors Image 1
1619888 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.0666 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
12.07 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.0666 €

Device connector, front mounting, 1619888, Phoenix Contact

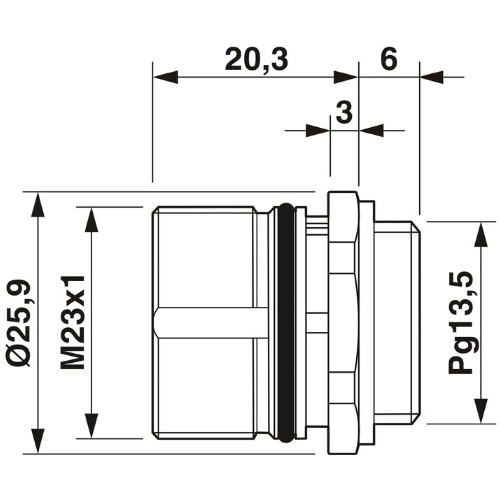

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 12, contact type: male, crimp connection, axial sealing, central mounting Pg13.5

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Cable cross-section 1.0 mm²
Pin number 12 pole
Version plug
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
