1619875 | Phoenix Contact
Socket, 6 pole, crimp connection, screw locking, straight, 1619875
Unit Price (€ / pc.)
12.3046 € *
Standard delivery time from the manufacturer is: 4 Weeks

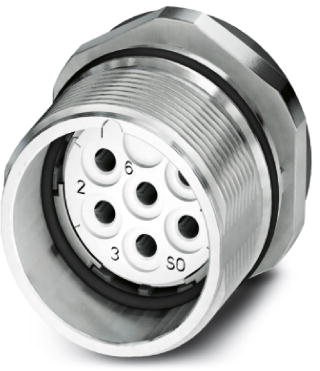

Device connector, front mounting, 1619875, Phoenix Contact

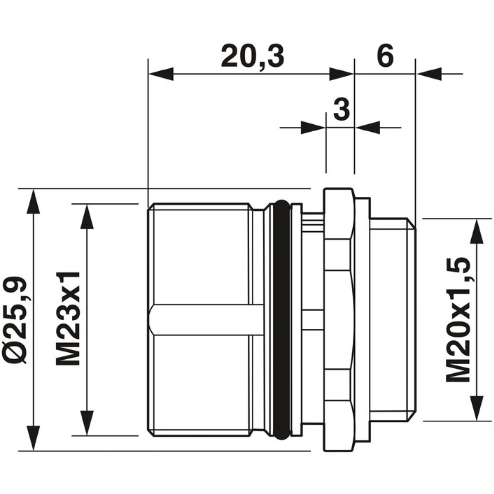

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 6, contact type: female, crimp connection, axial sealing, central fixing M20x1.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Shell Material | gadolinium zinc | |
| Cable cross-section | 2.5 mm² | |
| Version | socket | |
| Assembly | central Mounting | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
