1619872 | Phoenix Contact

Plug, 7 pole, solder connection, screw locking, straight, 1619872

Order No.: 61P9902
EAN: 4046356820943
MPN:
1619872
CA-07P1N126Y00
Series: CA
1619872 Phoenix Contact Other Circular Connectors Image 1
1619872 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.6818 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
21.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.6818 €

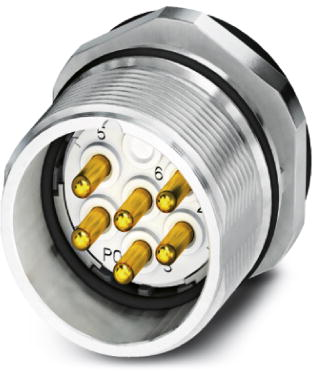

Device connector, front mounting, 1619872, Phoenix Contact

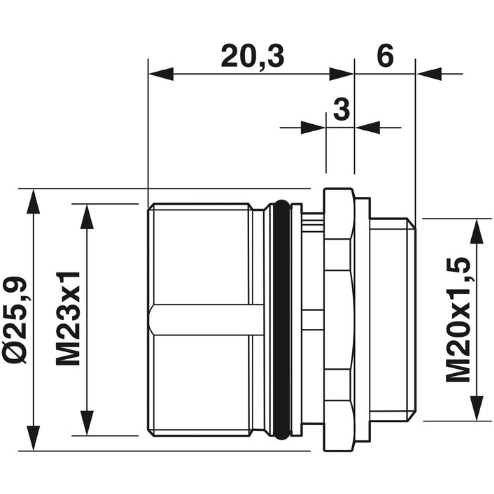

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole number: 7, contact type: male, solder termination, axial seal, central mounting M20x1.5

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 2.5 mm²
Pin number 7 pole
Version plug
Shell Material gadolinium zinc
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
