1619870 | Phoenix Contact

Plug, 7 pole, crimp connection, screw locking, straight, 1619870

Order No.: 61P9928
EAN: 4046356820967
MPN:
1619870
CA-07P1N8A6Y00
Series: CA

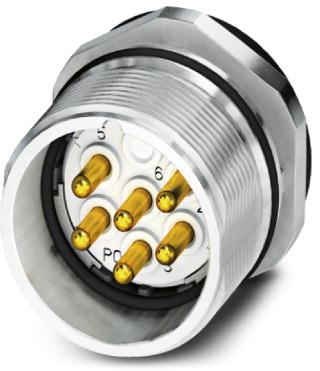

1619870 Phoenix Contact Other Circular Connectors Image 1

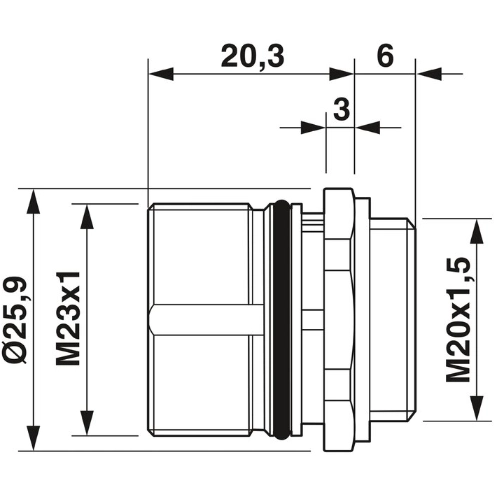

1619870 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.3046 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
12.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
12.3046 €

Device connector, front mounting, 1619870, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 7, contact type: male, crimp connection, axial seal, central fixing M20x1.5

Technical specifications
Filter Property Value
Version plug
Orientation straight
Shell Material gadolinium zinc
Pin number 7 pole
Cable cross-section 2.5 mm²
Contact connection crimp connection
Assembly central Mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
