1619868 | Phoenix Contact

Plug, 9 pole, solder connection, screw locking, straight, 1619868

Order No.: 62P0008
EAN: 4046356820981
MPN:
1619868
CA-09P1N126Y00
Series: CA

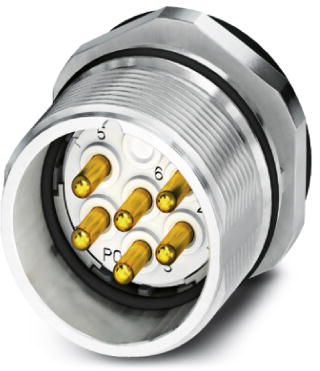

1619868 Phoenix Contact Other Circular Connectors Image 1
1619868 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.992 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
19.99 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.992 €

Device connector, front mounting, 1619868, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 8+1, contact type: male, solder termination, axial seal, central mounting M20x1.5

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 1.0 mm²
Pin number 9 pole
Version plug
Shell Material gadolinium zinc
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
