1619859 | Phoenix Contact
Socket, 16 pole, crimp connection, screw locking, straight, 1619859
Unit Price (€ / pc.)
15.8865 € *
Standard delivery time from the manufacturer is: 4 Weeks

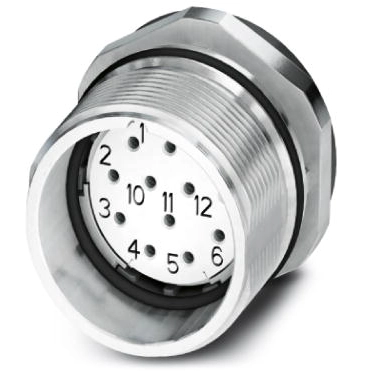

Device connector, front mounting, 1619859, Phoenix Contact

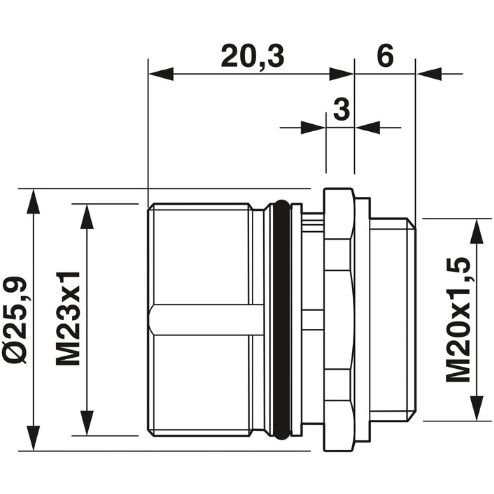

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 16, contact type: female, crimp connection, axial sealing, central fixing M20x1.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | gadolinium zinc | |
| Assembly | central Mounting | |
| Orientation | straight | |
| Version | socket | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Pin number | 16 pole | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
