1619857 | Phoenix Contact

Socket, 17 pole, solder connection, screw locking, straight, 1619857

Order No.: 62P0462
EAN: 4046356821094
MPN:
1619857
CA-17S1N126Y00
Series: CA

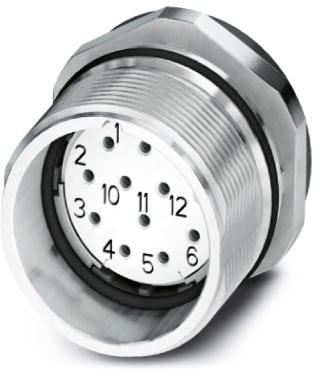

1619857 Phoenix Contact Other Circular Connectors Image 1
1619857 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.5731 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
25.57 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.5731 €

Device connector, front mounting, 1619857, Phoenix Contact

Panel connector, front panel, straight, shielded: yes, for standard and SPEEDCON interlock, M23, pole count: 17, contact type: female, solder termination, axial seal, central mounting M20x1.5

Technical specifications
Filter Property Value
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 2.5 mm²
Pin number 17 pole
Version socket
Shell Material gadolinium zinc
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
