1619852 | Phoenix Contact
Plug, 19 pole, solder connection, screw locking, straight, 1619852
Unit Price (€ / pc.)
26.8107 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
26.81 € *
Price list
Quantity
Price per unit*
1 pcs.
26.8107 €
10 pcs.
24.6687 €
25 pcs.
20.9678 €
50 pcs.
18.5878 €
*incl. VAT plus shipping costs
Subject to prior sale
Device connector, 1619852, Phoenix Contact

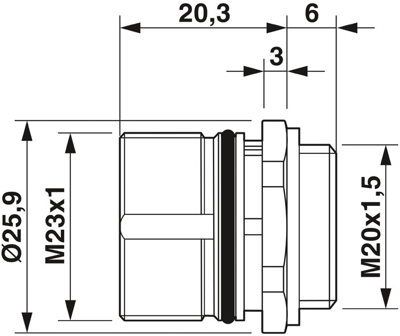

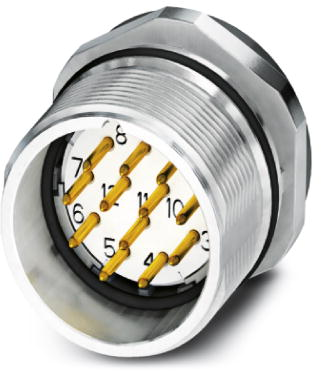

M23, Device connector front mounting, CA, Straight, Shielded: yes, for standard and SPEEDCON interlock, Number of positions: 16+3, Direction of rotation: Standard, Type of contact: Pin, Solder connection, Axial seal, Central fastening M20 x 1.5, Coding: N, Alternative product in accordance with RoHS II without Exemption 6c.
Features
- Safe use in the field, thanks to high degree of protection
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Crimping connection: vibration- and temperature-resistant assembly
- Application-specific wall mounting optionally with thread or anti-rotation protection and lock nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 1.0 mm² | |
| contact surface | nickel-plated/gold-plated | |
| Type of locking | screw locking | |
| Shell Material | gadolinium zinc | |
| Version | plug | |
| Orientation | straight | |
| Assembly | front mounting | |
| Pin number | 19 pole | |
| Contact connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
