1619851 | Phoenix Contact

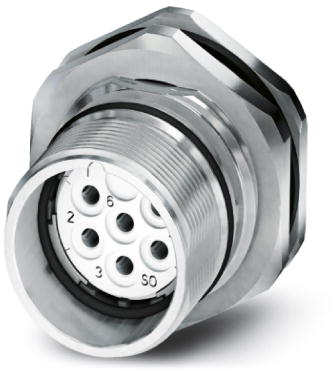

Socket, 6 pole, solder connection, screw locking, straight, 1619851

Order No.: 61P9863
EAN: 4046356821155
MPN:
1619851
CA-06S1N12HZ00
Series: CA
1619851 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
27.9531 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
27.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
27.9531 €

Device connector, front mounting, 1619851, Phoenix Contact

Panel connector, rear panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 6, contact type: female, solder termination, axial seal, central fixing

Technical specifications
Filter Property Value
Version socket
Orientation straight
Shell Material copper zinc alloy
Pin number 6 pole
Cable cross-section 2.5 mm²
Contact connection solder connection
contact surface nickel-plated/gold-plated
Assembly central Mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
