1619849 | Phoenix Contact
Socket, 6 pole, crimp connection, screw locking, straight, 1619849
Unit Price (€ / pc.)
13.8992 € *
Available: 6 pcs.
Total Price:
13.90 € *
Price list
Quantity
Price per unit*
1 pcs.
13.8992 €
10 pcs.
12.2332 €
50 pcs.
11.3883 €
150 pcs.
10.9004 €
500 pcs.
10.3530 €
*incl. VAT plus shipping costs
Subject to prior sale

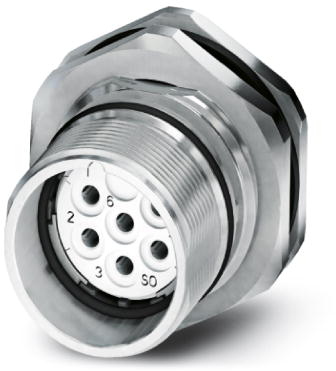

Device connector, 1619849, Phoenix Contact
M23, Device connector, Rear mounting, CA, Straight, Shielded: yes, for standard and SPEEDCON interlock, Number of positions: 6, Direction of rotation: Standard, Type of contact: Socket, Crimp connection, Axial seal, Central fixing, Coding: N, Alternative product in accordance with RoHS II without Exemption 6c.
Features
- Safe use in the field, thanks to high degree of protection
- Connector for flexible on-site assembly
- Consistent EMC protection for reliable transmission of signals
- Crimping connection: vibration- and temperature-resistant assembly
- Application-specific wall mounting optionally with thread or anti-rotation protection and lock nut
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | copper alloy | |
| Assembly | central Mounting | |
| Orientation | straight | |
| Version | socket | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Pin number | 6 pole | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
