1619847 | Phoenix Contact

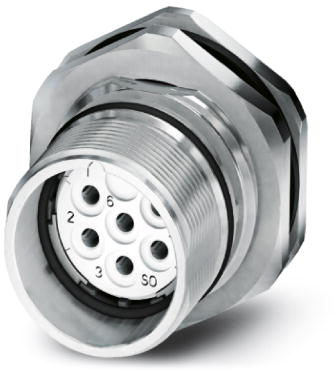

Socket, 7 pole, solder connection, screw locking, straight, 1619847

Order No.: 61P9969
EAN: 4046356821193
MPN:
1619847
CA-07S1N12HZ00
Series: CA
1619847 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
28.8218 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
28.82 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.8218 €

Device connector, front mounting, 1619847, Phoenix Contact

Panel connector, rear panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 7, contact type: female, solder termination, axial seal, central fixing

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 2.5 mm²
Pin number 7 pole
Version socket
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
