1619790 | Phoenix Contact

Socket, 12 pole, solder connection, screw locking, straight, 1619790

Order No.: 62P0238
EAN: 4046356821278
MPN:
1619790
CA-12S1N12HZ00
Series: CA
1619790 Phoenix Contact Other Circular Connectors
Image may differ
Unit Price (€ / pc.)
28.1078 € *
Available: 0 pcs.
Leadtime: 5 Weeks **
Total Price:
28.11 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
28.1078 €

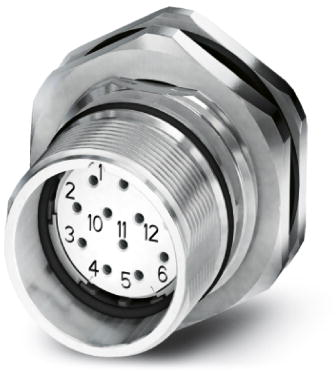

Device connector, front mounting, 1619790, Phoenix Contact

Panel connector, rear panel, straight, shielded: yes, for standard and SPEEDCON interlocking, M23, pole count: 12, contact type: female, solder termination, axial seal, central fixing

Technical specifications
Type of locking screw locking
contact surface nickel-plated/gold-plated
Assembly central Mounting
Contact connection solder connection
Cable cross-section 1.0 mm²
Pin number 12 pole
Version socket
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
