1619039 | Phoenix Contact

Socket, 8 pole, crimp connection, screw locking, straight, 1619039

Order No.: 62P4472
EAN: 4046356813075
MPN:
1619039
ST-08S1N8AWQ00S
Series: ST
1619039 Phoenix Contact Other Circular Connectors Image 1
1619039 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.3629 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
15.36 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
15.3629 €

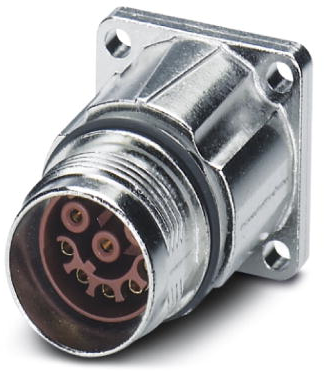

Device connector, front mounting, 1619039, Phoenix Contact

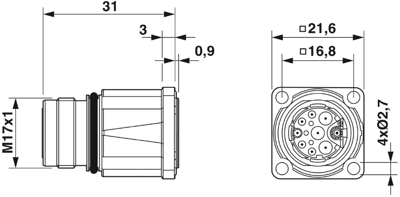

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 8, contact type: female, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Version Buchse
Shell Material Metall
Contact connection Crimpanschluss
Assembly Panelmontage
Orientation gerade
Pin number 8-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85444290
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
