1615686 | Phoenix Contact
Plug, 6 pole, crimp connection, screw locking, straight, 1615686
Unit Price (€ / pc.)
257.2304 € *
Standard delivery time from the manufacturer is: 10 Weeks

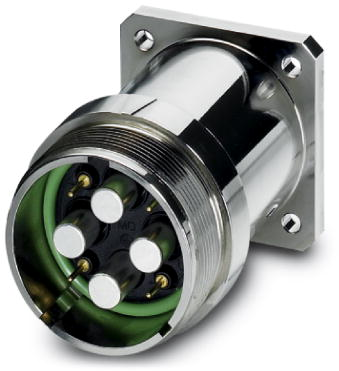

Device connector, front mounting, 1615686, Phoenix Contact

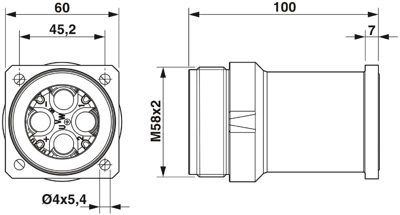

Panel connector, front panel, straight, screw-locking, M58, No. of poles: 2+3+PE, contact type: pin, crimp termination, o-ring axial, 4x Ø 5.4, shielded: yes, flange size: 60 mm x 60 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Shell Material | aluminum | |
| Version | plug | |
| Assembly | panel mounting | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
