Socket, 16 pole, crimp connection, screw locking, angled, 1613786
Unit Price (€ / pc.)
17.5763 € *
Standard delivery time from the manufacturer is: 4 Weeks

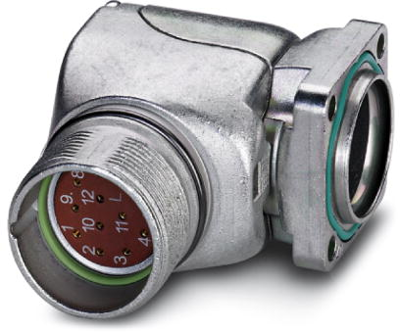

Device connector, front mounting, 1613786, Phoenix Contact

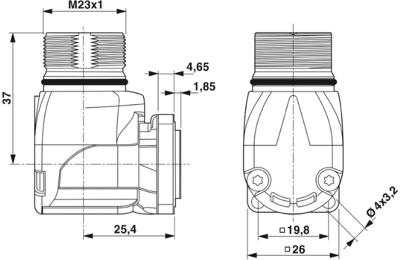

Panel connector, front panel, angled fixed, screw locking, M23, pole count: 16, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Shell Material | copper alloy | |
| Assembly | panel mounting | |
| Orientation | angled | |
| Version | socket | |
| Type of locking | screw locking | |
| Contact connection | crimp connection | |
| Pin number | 16 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
