1613784 | Phoenix Contact

Socket, 16 pole, crimp connection, screw locking, angled, 1613784

Order No.: 62P3900
EAN: 4046356402286
MPN:
1613784
RF-16S1N8AA200
Series: RF
1613784 Phoenix Contact Other Circular Connectors Image 1
1613784 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
77.8022 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
778.02 € *
*incl. VAT plus shipping costs
Subject to prior sale
10 pcs.
77.8022 €

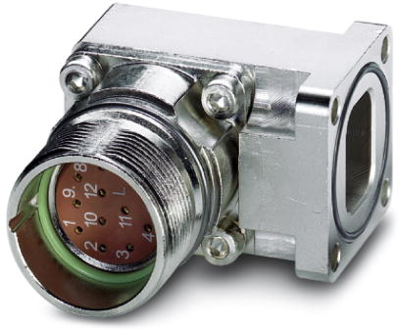

Device connector, front mounting, 1613784, Phoenix Contact

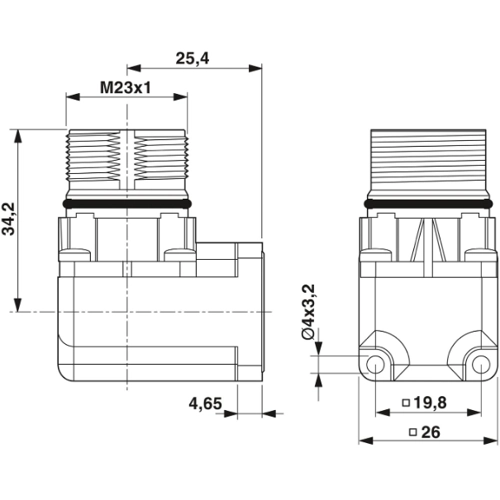

Panel connector, front panel, angled fixed, screw locking, M23, pole count: 16, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 26 mm x 26 mm

Technical specifications
Type of locking screw locking
Assembly panel mounting
Contact connection crimp connection
Pin number 16 pole
Version socket
Shell Material copper alloy
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
