1613630 | Phoenix Contact
Socket, 9 pole, crimp connection, screw locking, straight, 1613630
Unit Price (€ / pc.)
16.2911 € *
Standard delivery time from the manufacturer is: 4 Weeks

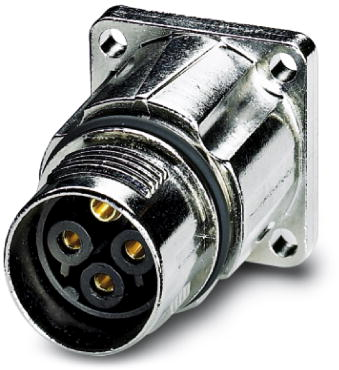

Device connector, front mounting, 1613630, Phoenix Contact

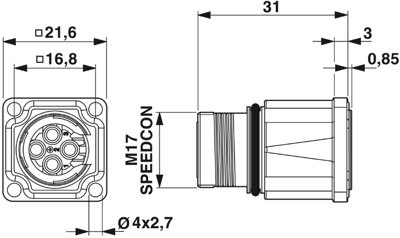

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 5+3+PE, contact type: female, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| Assembly | panel mounting | |
| Shell Material | metal | |
| Orientation | straight | |
| Pin number | 9 pole | |
| Version | socket | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
