1613592 | Phoenix Contact

Jack, 8 pole, crimp connection, screw locking, straight, 1613592

Order No.: 73F387
EAN: 4046356401401
MPN:
1613592
ST-7ES1N8A6100S
Series: ST

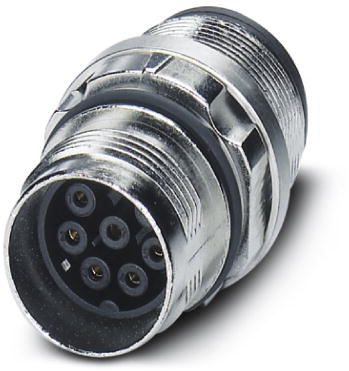

1613592 Phoenix Contact Other Circular Connectors Image 1
1613592 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.2542 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
19.25 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
19.2542 €

Device connector, front mounting, 1613592, Phoenix Contact

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 7+PE, contact type: female, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Filter Property Value
Version socket
Orientation straight
Pin number 8 pole
Contact connection crimp connection
Assembly central Mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
