1613591 | Phoenix Contact

Plug, 8 pole, crimp connection, screw locking, straight, 1613591

Order No.: 62P4722
EAN: 4046356401395
MPN:
1613591
ST-7EP1N8AH100S
Series: ST

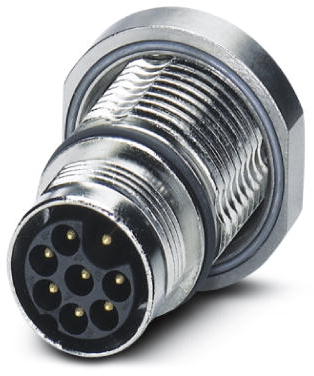

1613591 Phoenix Contact Other Circular Connectors Image 1
1613591 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.5223 € *
Available in 10 days: 17 pcs. - if ordered today
Total Price:
33.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.5223 €

Device connector, front mounting, 1613591, Phoenix Contact

Panel connector, rear panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 7+PE, contact type: male, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Filter Property Value
Pin number 8 pole
Contact connection crimp connection
Assembly central Mounting
Version plug
Shell Material copper alloy
Orientation straight
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
