1613568 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, straight, 1613568

Order No.: 62P4668
EAN: 4046356401180
MPN:
1613568
ST-6EP1N8AH100S
Series: ST

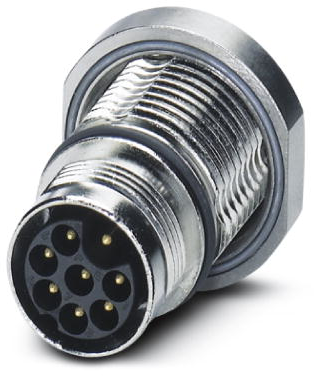

1613568 Phoenix Contact Other Circular Connectors Image 1

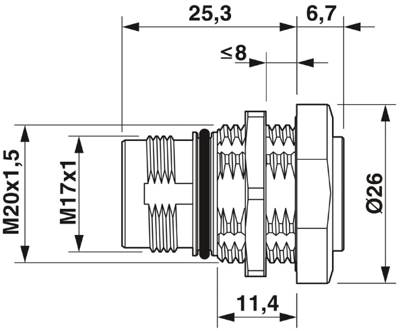

1613568 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
32.8083 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
32.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
32.8083 €

Device connector, front mounting, 1613568, Phoenix Contact

Panel connector, rear panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 6+PE, contact type: male, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Pin number 6 pole
Version plug
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
