1613548 | Phoenix Contact

Plug, 6 pole, crimp connection, screw locking, straight, 1613548

Order No.: 62P4591
EAN: 4046356400992
MPN:
1613548
ST-5EP1N8A6100S
Series: ST

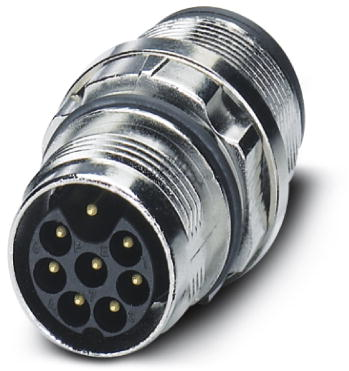

1613548 Phoenix Contact Other Circular Connectors Image 1
1613548 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
18.4569 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
18.46 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
18.4569 €

Device connector, front mounting, 1613548, Phoenix Contact

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 5+PE, contact type: male, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Pin number 6 pole
Version plug
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
