1613547 | Phoenix Contact

Socket, 3 pole, crimp connection, screw locking, straight, 1613547

Order No.: 62P4586
EAN: 4046356400985
MPN:
1613547
ST-3ES1N8AH100S
Series: ST

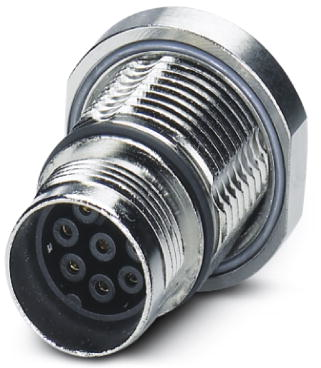

1613547 Phoenix Contact Other Circular Connectors Image 1

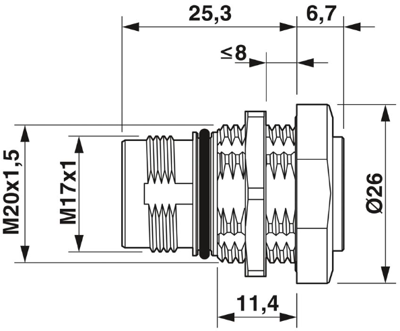

1613547 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
33.5223 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
33.52 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
33.5223 €

Device connector, front mounting, 1613547, Phoenix Contact

Panel connector, rear panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 3+PE, contact type: female, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Pin number 3 pole
Version socket
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
