1613546 | Phoenix Contact

Socket, 3 pole, crimp connection, screw locking, straight, 1613546

Order No.: 62P4565
EAN: 4046356400978
MPN:
1613546
ST-3ES1N8A6100S
Series: ST

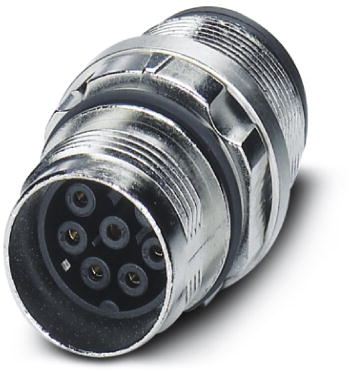

1613546 Phoenix Contact Other Circular Connectors Image 1

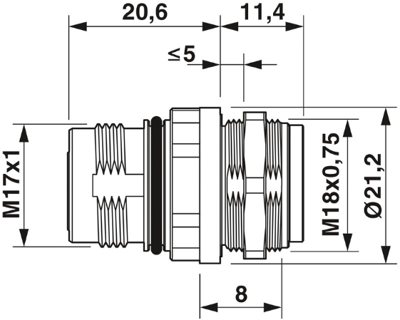

1613546 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.8024 € *
Available in 10 days: 267 pcs. - if ordered today
Total Price:
17.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.8024 €

Device connector, front mounting, 1613546, Phoenix Contact

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 3+PE, contact type: female, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Filter Property Value
Orientation straight
Assembly central Mounting
Pin number 3 pole
Version socket
Contact connection crimp connection
Type of locking screw locking
Shell Material copper alloy
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
