1613543 | Phoenix Contact

Socket, 17 pole, crimp connection, screw locking, straight, 1613543

Order No.: 62P4528
EAN: 4046356400947
MPN:
1613543
ST-17S1N8AH100S
Series: ST
1613543 Phoenix Contact Other Circular Connectors Image 1
1613543 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
34.7004 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
34.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
34.7004 €

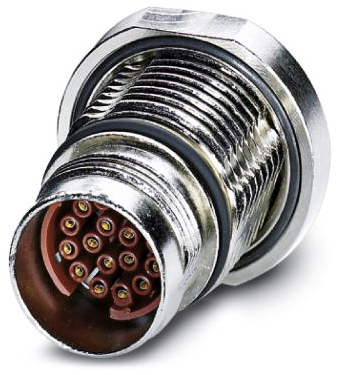

Device connector, front mounting, 1613543, Phoenix Contact

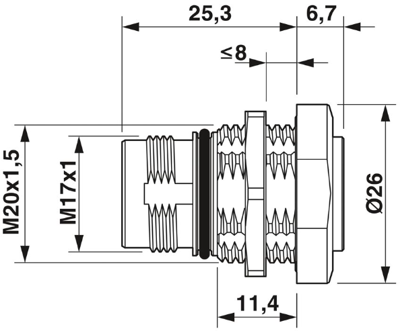

Panel connector, rear panel, straight, for standard and SPEEDCON locking, M17, number of poles: 17, contact type: female, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Pin number 17 pole
Version socket
Shell Material metal
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
