1613542 | Phoenix Contact

Socket, 17 pole, crimp connection, screw locking, straight, 1613542

Order No.: 62P4505
EAN: 4046356400930
MPN:
1613542
ST-17S1N8A6100S
Series: ST

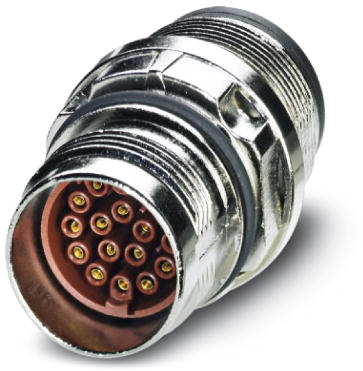

1613542 Phoenix Contact Other Circular Connectors Image 1

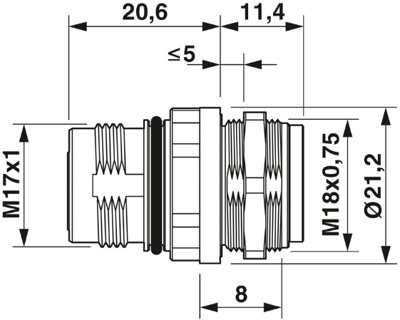

1613542 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.0035 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
21.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
21.0035 €

Device connector, front mounting, 1613542, Phoenix Contact

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 17, contact type: female, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Pin number 17 pole
Version socket
Shell Material metal
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
