1613541 | Phoenix Contact

Plug, 17 pole, crimp connection, screw locking, straight, 1613541

Order No.: 62P4500
EAN: 4046356400923
MPN:
1613541
ST-17P1N8AH100S
Series: ST

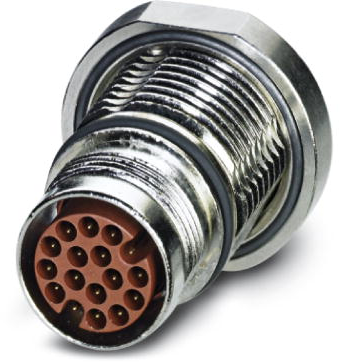

1613541 Phoenix Contact Other Circular Connectors Image 1
1613541 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
34.0578 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
34.06 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
34.0578 €

Device connector, front mounting, 1613541, Phoenix Contact

Panel connector, rear panel, straight, for standard and SPEEDCON locking, M17, no. of poles: 17, contact type: male, crimp connection, O-ring axial, central fixing, shielded: yes

Technical specifications
Type of locking screw locking
Assembly central Mounting
Contact connection crimp connection
Pin number 17 pole
Version plug
Shell Material copper alloy
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
