1613535 | Phoenix Contact

Socket, 8 pole, crimp connection, screw locking, angled, 1613535

Order No.: 62P4405
EAN: 4046356400909
MPN:
1613535
SM-7ES1N8AYW00S
Series: SM

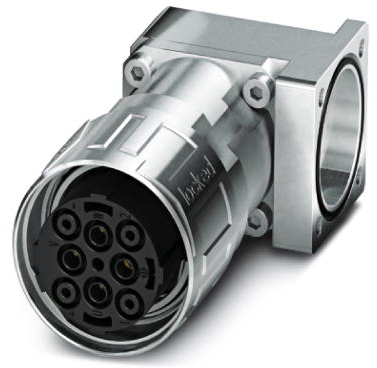

1613535 Phoenix Contact Other Circular Connectors Image 1
1613535 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
159.5314 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
159.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
159.5314 €

Device connector, front mounting, 1613535, Phoenix Contact

Panel connector, front panel with knurled nut, angled fixed, SPEEDCON locking, M40, number of poles: 4+3+PE, contact type: female, crimp connection, O-ring axial, 4x Ø4.2, shielded: yes, flange dimension: 40 mm x 40 mm

Technical specifications
Type of locking screw locking
Assembly front mounting
Contact connection crimp connection
Pin number 8 pole
Version socket
Shell Material copper alloy
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
