1613516 | Phoenix Contact
Plug, 6 pole, crimp connection, screw locking, angled, 1613516
Unit Price (€ / pc.)
86.7629 € *
Standard delivery time from the manufacturer is: 4 Weeks

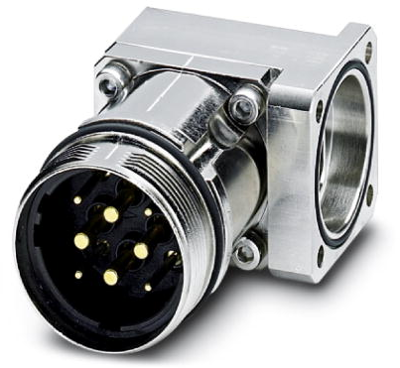

Device connector, front mounting, 1613516, Phoenix Contact

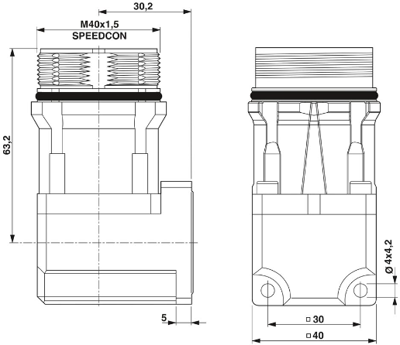

Panel connector, front panel, angled fixed for higher loads, SPEEDCON locking, M40, number of poles: 2+3+PE, contact type: male, crimp connection, O-ring axial, 4x Ø4.2, shielded: yes, flange dimension: 40 mm x 40 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| Assembly | front mounting | |
| Shell Material | copper alloy | |
| Orientation | angled | |
| Pin number | 6 pole | |
| Version | plug | |
| Type of locking | screw locking |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
