1613286 | Phoenix Contact

Plug, 8 pole, crimp connection, screw locking, straight, 1613286

Order No.: 62P4446
EAN: 4046356708487
MPN:
1613286
ST-08P1N8AWQ00S
Series: ST
1613286 Phoenix Contact Other Circular Connectors Image 1
1613286 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
25.7397 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
25.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
25.7397 €

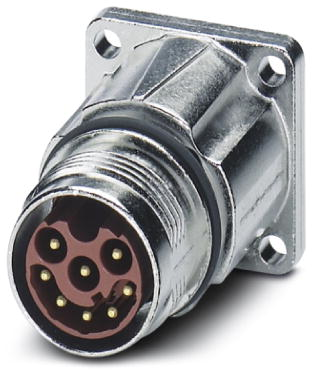

Device connector, front mounting, 1613286, Phoenix Contact

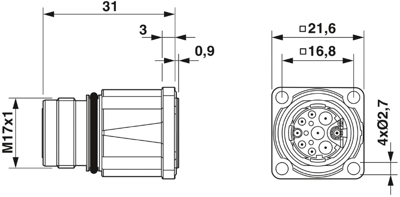

Panel connector, front panel, straight, for standard and SPEEDCON locking, M17, number of poles: 8, contact type: male, crimp connection, O-ring axial, 4x Ø2.7, shielded: yes, flange dimension: 21.6 mm x 21.6 mm

Technical specifications
Type of locking screw locking
Assembly front mounting
Contact connection crimp connection
Pin number 8 pole
Version plug
Shell Material metal
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
