1607898 | Phoenix Contact
Socket, 17 pole, crimp connection, screw locking, angled, 1607898
Unit Price (€ / pc.)
18.1118 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

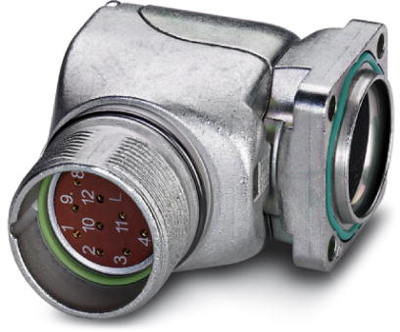

Device connector, front mounting, 1607898, Phoenix Contact

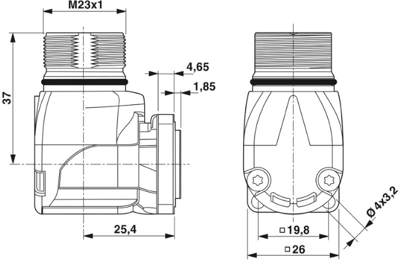

Panel connector, front panel, angled fixed, screw locking, M23, pole count: 17, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange size: 26 mm x 26 mm
Technical specifications
| Type of locking | screw locking | |
| Assembly | front mounting | |
| Contact connection | crimp connection | |
| Pin number | 17 pole | |
| Version | socket | |
| Shell Material | copper alloy | |
| Orientation | angled |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
