1607887 | Phoenix Contact

Socket, 17 pole, crimp connection, screw locking, angled, 1607887

Order No.: 62P3919
EAN: 4046356269261
MPN:
1607887
RF-17S1N8AAC00
Series: RF

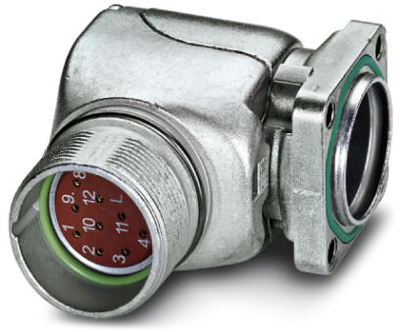

1607887 Phoenix Contact Other Circular Connectors Image 1
1607887 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.3704 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
26.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
26.3704 €

Device connector, front mounting, 1607887, Phoenix Contact

Panel connector, front panel, angled rotatable, screw locking, M23, pole count: 17, contact type: female, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 28 mm x 28 mm

Technical specifications
Type of locking screw locking
Assembly front mounting
Contact connection crimp connection
Pin number 17 pole
Version socket
Shell Material copper alloy
Orientation angled
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
