1607852 | Phoenix Contact

Plug, 17 pole, crimp connection, screw locking, angled, 1607852

Order No.: 62P3908
EAN: 4046356269049
MPN:
1607852
RF-17P1N8AAC00
Series: RF

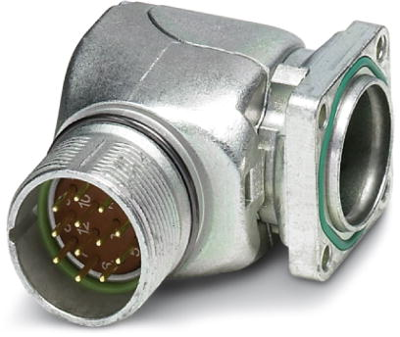

1607852 Phoenix Contact Other Circular Connectors Image 1

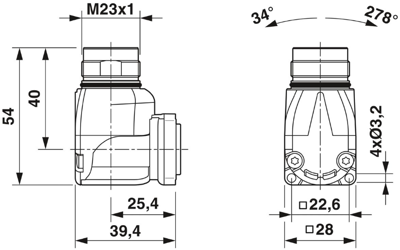

1607852 Phoenix Contact Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
26.3704 € *
Available: 0 pcs.
Available in 10 days: 234 pcs.
Leadtime: 2 Weeks **
Total Price:
26.37 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
26.3704 €

Device connector, front mounting, 1607852, Phoenix Contact

Panel connector, front panel, angled rotatable, screw locking, M23, pole count: 17, contact type: male, crimp connection, O-ring axial, 4x Ø 3.2, shielded: yes, flange dimension: 28 mm x 28 mm

Technical specifications
Version Stecker
Shell Material Kupferlegierung
Contact connection Crimpanschluss
Assembly Frontmontage
Orientation abgewinkelt
Pin number 17-polig
Type of locking Schraubverriegelung
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
